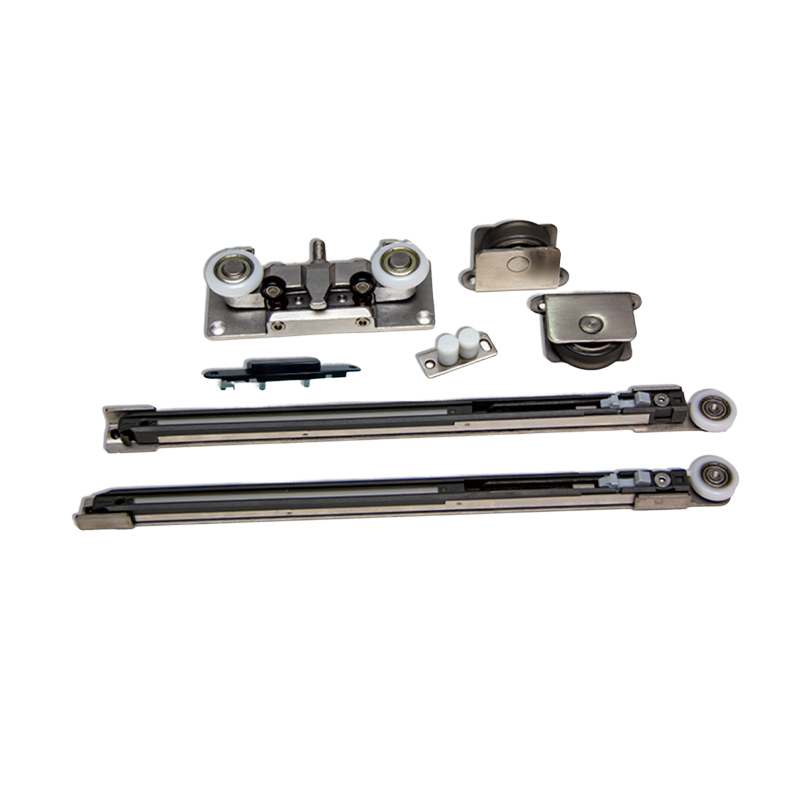

A NEW GENERATION OF GHOST GATE (ALUMINUM FRAME DOOR) LOCK (OPTIONAL)
YB06
Scope of application: Single fan and double door aluminum frame
Adjustment performance: up and down, left and right, adjustable
Door weight: single door≦80kg
Door width: ≦1300 mm
1.Patent produots. pioneering design.
2.All institutions are all the hidden design, minimalist/high-end.
3.The door is closed, doors and walls of overlap is only 160 mm.
4.Double elastic system, self adjusting/adapt to the ground not level.
5.Two-dimensional adjust: wall body distance and body balance.
6.Double insurance olasp and loose struoture, more safety.
7.Buffer for quick release assembly structure, easy to install.
8.Stainless steel material, sturdy/bearing is sfronger.
9.New door lock function, optional is applicable todifferent environment.
